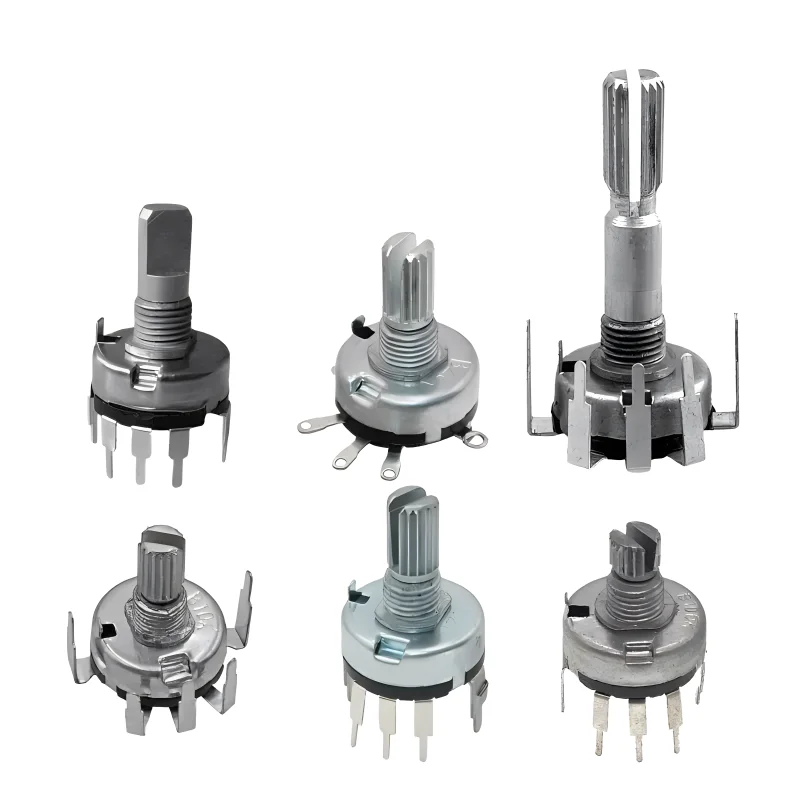

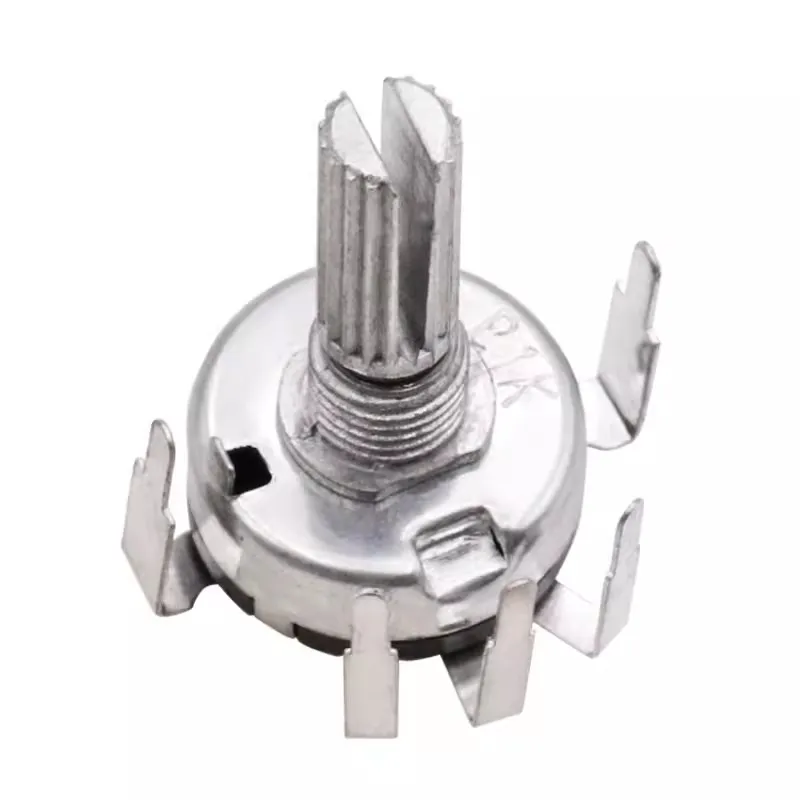

RV17 B1K B10K B50K single-link audio amplifier with switch volume adjustable rotary potentiometer 5 pins
product description
Total resistance value: 500 Ω -1M Ω
Total resistance tolerance: ± 20%
Impedance characteristic types: A, B, C, D
Noise: Less than 100mV at 20 mmc
Insulation impedance: More than 10M Ω at DC 250V
Voltage withstand: 1 minute at AC 250V
Residual resistance value: Term. 1-2: Less than 10 Ω Term. 2-3: Less than 10 Ω
Synchronous error (dual connection): -40dB~0dB ± 3dB
Rated voltage
B Linear: 10mm, 15mm: AC 100V 20mm, 25mm: AC 200V 30mm: AC 250V
Other linearity: 10mm, 15mm: AC 50V 20mm, 25mm: AC 150V 30mm: AC 200V
Rated power (single/double)
B Linear: 10mm, 15mm: 0.05W/0.025W 20mm, 25mm: 0.1W/0.05W 30mm: 0.2W/0.1W
Other linearity: 10mm, 15mm: 0.025W/0.012W 20mm, 25mm: 0.05W/0.025W 30mm: 0.1W/0.05W
mechanical properties
Force: 5-200 gf.cm
Center release force: 10-400 gf.cm
Stopping strength: 3.0Kgf.cm Min (from the base level to a point of 2mm)
Horizontal shaking amount of sliding handle: 2 (2xL)/20mm Max. (L: Level length both sides)
Horizontal push-pull strength: 3.0 Kgf Min. at 5 seconds
Durability performance
Rotating lifespan: 10000 Cycles

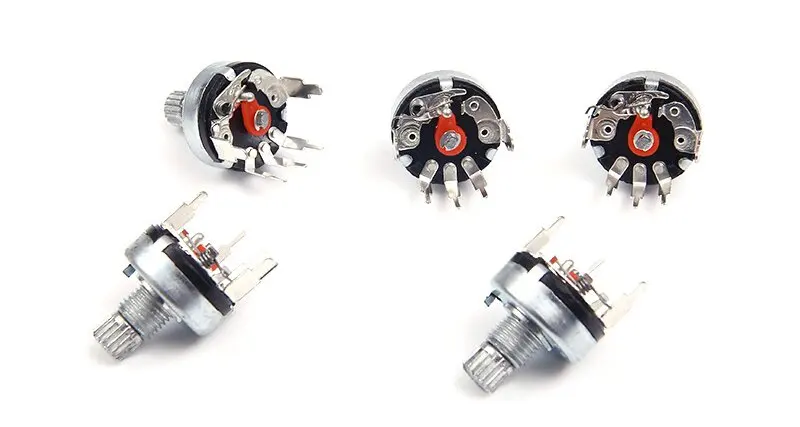

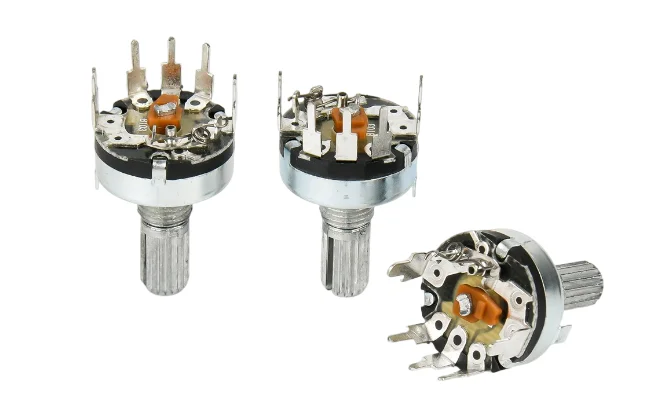

Product Features
The V17 carbon film potentiometer with switch is a potentiometer with high performance, multi-function, reliability and long service life. The RV17 carbon film potentiometer with switch is widely used in various electronic equipment, such as audio equipment, communication equipment, Instruments, home appliances, etc.

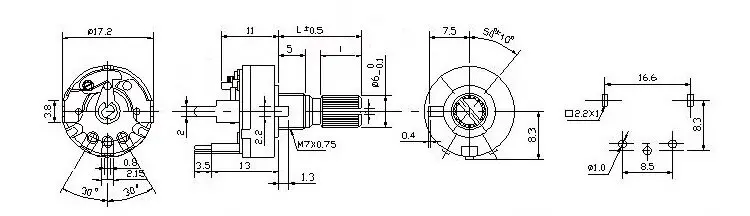

Product size
Specification parameters
| ITEM | SPECIFICATION |
Electrical
Characteristics | Temp Range | -10℃~100℃ |
| Rated Power | Curve B:0.1W
Other curve B:0.05W |
| Max Operation Voltage | Curve B:AC 200V
Other than B:AC 150V |
| Resistance Range | 1KΩ~2MΩ |
| Allow Desistance Tolerance | ±20% |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ 0.1%R max
250KΩ>R>10KΩ 20Ωmax
10KΩ≥R 100max |
| Resistance Law | A,B,C |
| Switch Contact Resistance | Less than 20mΩ |
| Dielectric | AC500V,1minute |
| Insulation resistance | More than 50MΩ at DC500V |
| Rated switching power | DC12V 1A |
| Welding tin temperature | 235°℃±5℃;≤3s |
Mechanical
Characteristics | Rotational Torque | 7~40 mN.m(70~400gf.cm) |
| Total Rotational Angle | 260°±5° |
| Switch life | 10,000 times |
| Rotary life | 10,000 cycles |
| Shaft Stopper Strength | 3Kgf.cm/min |
| Push Pull Strength | 70 N |
| Switch working force/torque | 50~300gf.cm |
| Switch working angle | 30°±10° |
application area:
RV17 carbon film potentiometer with switch is widely used in adjusting volume, dimming speed, electronic equipment, communications, electronics, transportation, medical equipment, household appliances, testing instruments, power supply equipment and other fields
